- Door height
- Door width
- Horsepower
- Voltage/Phase
- Safety Devices
- Options

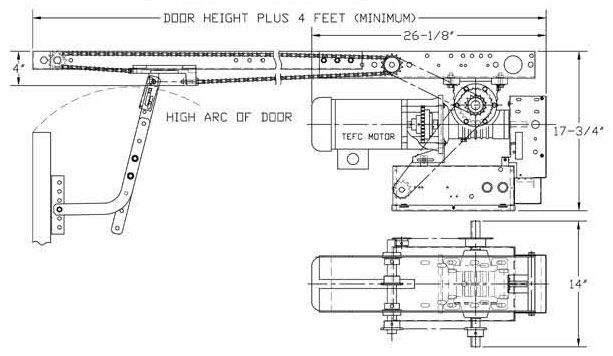

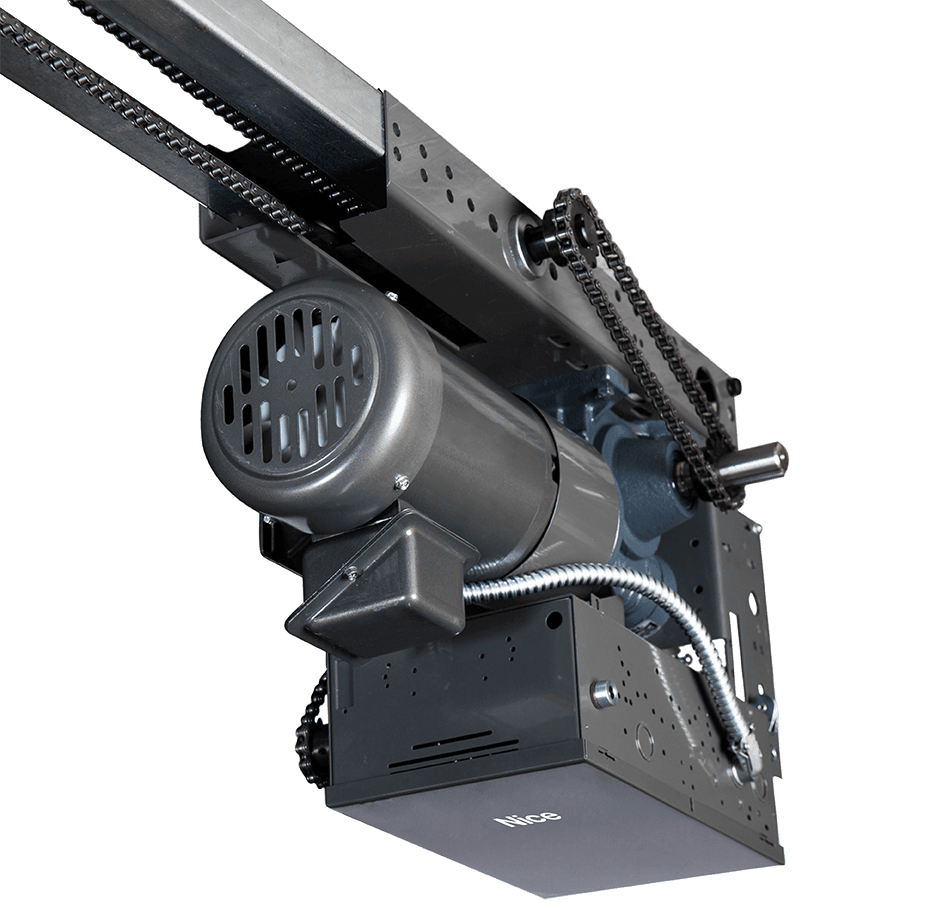

Trolley Operator Pro GT
The PRO-GT is designed for use on commercial/industrial sectional overhead doors with standard lift tracks. Commercial/industrial continuous duty worm gear trolley operator * UL325 (2010) compliant When ordering a PRO-GT operator, supply us with the following information:
-
- 2 year Warranty
- 3 Control Circuit Options Available: 1- (M) Heavy duty reversing contactor with mechanical & electrical interlock incorporating the New UL325 (2010) Interface Module. *C2 factory wiring standard (constant pressure close), B2 wiring can be field set by moving 1 jumper and Installing Micanan monitored fail safe photo-eyes (supplied) or (optional) Micanan compatible monitored fail safe electric edge 2- (E) Full Function Sman 10.0 Logic control board featuring on-board receiver with antenna, enhanced program selections to include B2, C2, D1, E2, T & TS and supplied with Micanan monitored fail safe photo-cells or (optional) Micanan monitored fail safe electric edge *D1 factory pre-set mode of operation standard (constant pressure open & close) 3- Heavy duty reversing contactor with mechanical & electrical interlock. (Not available in US or other areas where UL325 (20l0) is mandated) C2 factory wiring standard, B2 wiring can be field set by moving 1 Jumper. Provisions for standard reversing devices.
- 24V class 2 control circuit with 40VA transformer to protect against short circuit
- External radio control terminal strip
- Low friction powder metal limit cam nuts with fully adjustable rotary type limit switch assembly
- Three button open-close-stop control station Nema·l
- Continuous duty industrial motor with external reset overload protection (single phase)or external thermal overload relay protection (3 phase)
- Heavy duty worm gear reduction in oil bath gearbox
- Motor removable without affecting limit settings
- Adjustable in-line friction clutch
- Solenoid brake standard
- 1" permanently lubricated & sealed ball bearings on final drive shaft
- Emergency quick release disconnect for manual operation
- #41 roller chain drive on trolley rail assembly
- Trolley track for doors up to 12' standard
- Door speed 10" per second
- Baked on dark grey coat finish
- Shipping weight 120 Ibs (excludes rails)
NEW SMART 10.0 LOGIC BOARD
- On-board open, close, stop push buttons.
- Built-in 372 Mhz radio receiver
- Programable timer to close
- Programable mid stop
- Maximum run timer
- 1.5 sec time delay reverse
- Programable delay on close
- On-board fuse protection
- Plug in board option
- New vision lights
Features
- 2 year Warranty
- 3 Control Circuit Options Available: 1- (M) Heavy duty reversing contactor with mechanical & electrical interlock incorporating the New UL325 (2010) Interface Module. *C2 factory wiring standard (constant pressure close), B2 wiring can be field set by moving 1 jumper and Installing Micanan monitored fail safe photo-eyes (supplied) or (optional) Micanan compatible monitored fail safe electric edge 2- (E) Full Function Sman 10.0 Logic control board featuring on-board receiver with antenna, enhanced program selections to include B2, C2, D1, E2, T & TS and supplied with Micanan monitored fail safe photo-cells or (optional) Micanan monitored fail safe electric edge *D1 factory pre-set mode of operation standard (constant pressure open & close) 3- Heavy duty reversing contactor with mechanical & electrical interlock. (Not available in US or other areas where UL325 (20l0) is mandated) C2 factory wiring standard, B2 wiring can be field set by moving 1 Jumper. Provisions for standard reversing devices.
- 24V class 2 control circuit with 40VA transformer to protect against short circuit
- External radio control terminal strip
- Low friction powder metal limit cam nuts with fully adjustable rotary type limit switch assembly
- Three button open-close-stop control station Nema·l
- Continuous duty industrial motor with external reset overload protection (single phase)or external thermal overload relay protection (3 phase)
- Heavy duty worm gear reduction in oil bath gearbox
- Motor removable without affecting limit settings
- Adjustable in-line friction clutch
- Solenoid brake standard
- 1" permanently lubricated & sealed ball bearings on final drive shaft
- Emergency quick release disconnect for manual operation
- #41 roller chain drive on trolley rail assembly
- Trolley track for doors up to 12' standard
- Door speed 10" per second
- Baked on dark grey coat finish
- Shipping weight 120 Ibs (excludes rails)
Logic Board
NEW SMART 10.0 LOGIC BOARD
- On-board open, close, stop push buttons.
- Built-in 372 Mhz radio receiver
- Programable timer to close
- Programable mid stop
- Maximum run timer
- 1.5 sec time delay reverse
- Programable delay on close
- On-board fuse protection
- Plug in board option
- New vision lights
Downloads:
